13811018248

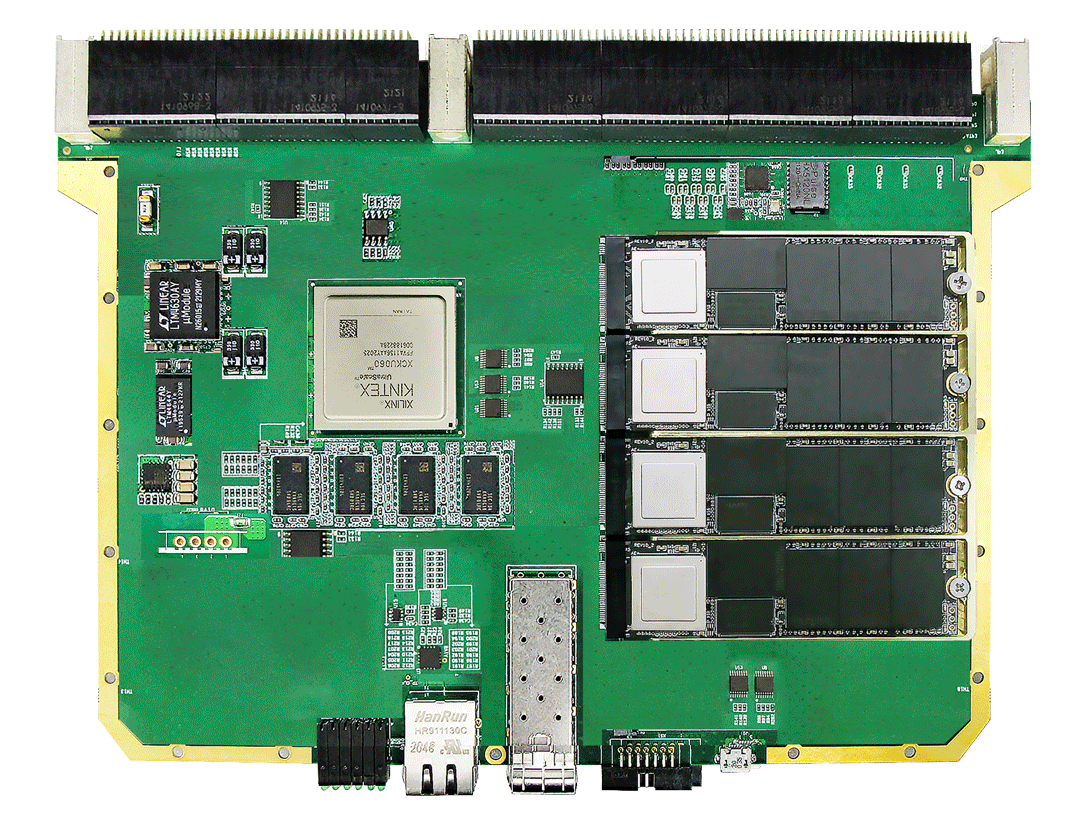

FK-VPXKU-M4
◆ | Standard 6U 5HP VPX architecture products, RAID 0 of the 4 disk group, provide multiple high -speed data interfaces to the outside world; |
◆ | Adopting Fengke NVME storage architecture, FTP or network disk access function can be provided through Gigabit/Mercedescent network ports; |
◆ | It has the characteristics of high bandwidth, large capacity, and providing standard EXFAT file systems, and can be widely used in data collection records storage and data management in related fields; |
Product features
-
Standard 6 u VPX structure -
16 TB storage capacity -
5 gb/S memory bandwidth -
For exFAT file system
Detailed parameters
| Product form | Standard 6U VPX architecture, height 5HP |
| Storage | Support 4 M.2 interface NVME SSD; capacity supports 8TB/16TB |
| Storage bandwidth | Continuous stable record bandwidth ≥5GB/s; continuous stable reading bandwidth ≥5GB/s |
| Data interface | Backboard P1: 8X GTH, supports a variety of high -speed protocols such as SRIO, Aurora and other high -speed protocols |
| Control interface | Front panel: 1st Wanzaro Exit, 1 Gigabit Network Pass |
| File management | Standard file system (EXFAT file system) |
| Control protocol | The network adopts a standard FTP communication protocol; supports standard FTP tools to access file access |
| Download bandwidth | Gigabit network port ≥100MB/s; 10,000MB/s |
| Software function | Real -time recording functions, data release functions, data access, file online management function, self -test and fault detection function, abnormal tolerance protection mechanism and other functions. |
| Operating temperature | Standard temperature: 0 ℃ to+55 ℃ Military temperature: -40 ° C to+70 ° C (optional, only partial hard disk, decreased bandwidth) |
| Cooling method | Compatible wind and cold and cold, support structure customization |
| Consumption | Full load run ≤55W |
| Size | 233.35mm × 160mm ×25mm |
Block diagram
Ordering Guide
| Serial number | Order model | Configuration |
| 1 | FK-VPXKU-M4S1-4T | 4TB storage capacity, ≥2GB bandwidth |
| 2 | FK-VPXKU-M4S2-4T | 4TB storage capacity, ≥5GB bandwidth |
| 3 | FK-VPXKU-M4S1-8T | 8TB storage capacity, ≥2GB bandwidth |
4 | FK-VPXKU-M4S1-16T | 16TB storage capacity, ≥2GB bandwidth |
