FK-SKU-M4

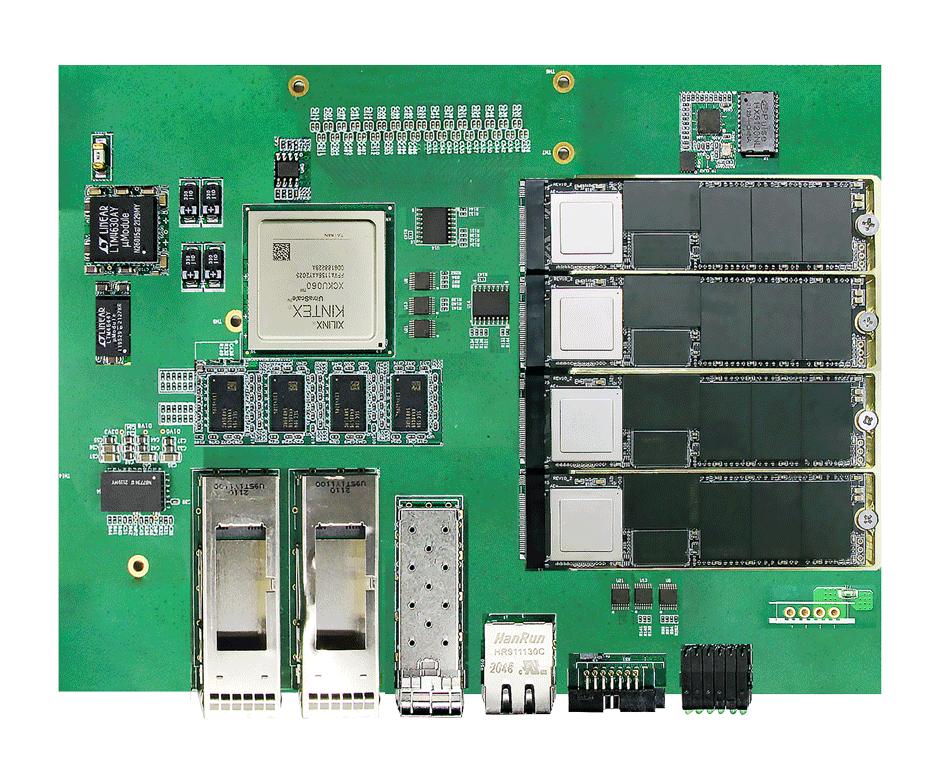

◆ | Adopting single -board design, 4 -set group RAID 0, providing 2 roads and 40G high -speed interfaces; |
◆ | Adopting Fengke NVME storage architecture, FTP or network disk access function can be provided through Gigabit/Mercedescent network ports; |
◆ | It has the characteristics of high bandwidth, high capacity, low power consumption, provides the characteristics of standard Exfat file systems, and can be widely used in data collection record storage and data management in related fields; |
Product features
-
Standard 6 u VPX structure -
For exFAT file system -
4 gb/S memory bandwidth -
16 TB storage capacity
Detailed parameters
| Product form | Standard 6U VPX architecture, height 5HP |
| Storage | Support 2 M.2 interface NVME SSD; Standard Edition 2TB, Maximum 8TB supports 8TB |
| Storage bandwidth | Continuous stable record bandwidth ≥4GB/s; continuous stable reading bandwidth ≥ 4GB/s |
| Data interface | Backboard: 8th road Gth, support Aurora, SRIO protocol |
| Control interface | Front panel: 1st Wanzaro Pass, 1 Gigabit Network port; network communication protocol, a standard FTP protocol adopted |
| File management | Standard file system (EXFAT file system) |
| Control protocol | The network adopts a standard FTP communication protocol; supports standard FTP tools to access file access |
| Download bandwidth | Gigabit network port ≥100MB/s; 10,000MB/s |
| Software function | Real -time recording functions, data release functions, data access, file online management function, self -test and fault detection function, abnormal tolerance protection mechanism and other functions. |
| Operating temperature | Standard temperature: 0 ℃ to+55 ℃ Military temperature: -40 ° C to+70 ° C (optional, only partial hard disk, decreased bandwidth) |
| Cooling method | Compatible wind and cold and cold, support structure customization |
| Consumption | Full load run ≤30W |
| Size | 233.4mm × 160mm |
Block diagram
Ordering Guide
| Serial number | Order model | Configuration |
| 1 | FK-SKU-M4S1-4T | 4TB storage capacity, ≥2GB bandwidth |
| 2 | FK-SKU-M4S2-4T | 4TB storage capacity, ≥ 4GB bandwidth |
| 3 | FK-SKU-M4S1-8T | 8TB storage capacity, ≥2GB bandwidth |
4 | FK-SKU-M4S1-16T | 16TB storage capacity, ≥2GB bandwidth |
