◆ | Adopt single -board design, 2 -set group RAID 0, provides 2 roads 10G high -speed interfaces; |
◆ | Adopting Fengke NVME storage architecture, FTP or network disk access functions can be provided through Gigabit network ports; |
◆ | It has the characteristics of miniaturization, low power consumption, providing standard EXFAT file system, and can be widely used in data collection records storage and data management in related fields; |

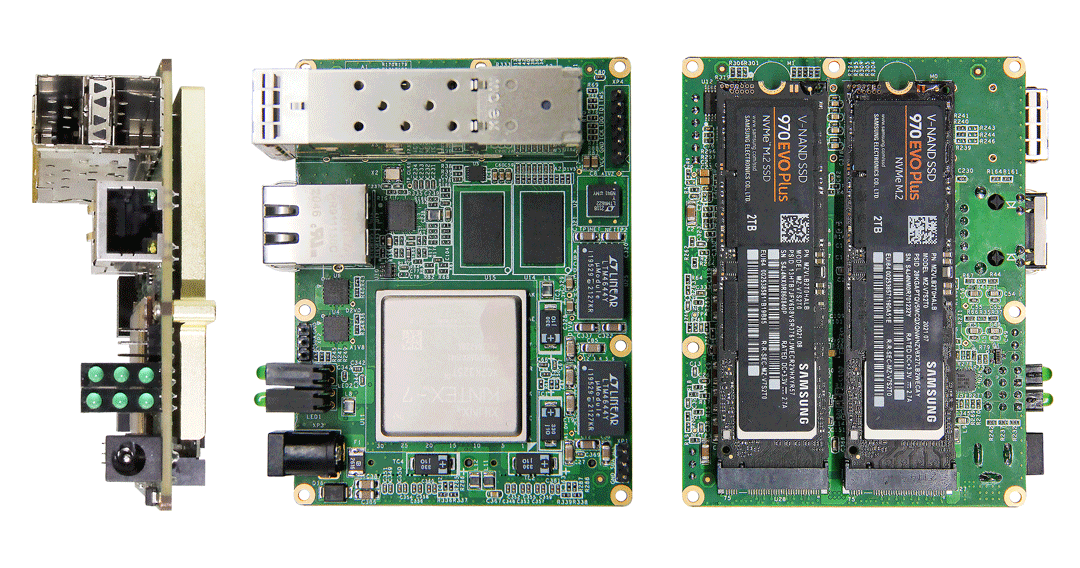

Product form | Smallized module device |
Storage | Support 2 M.2 interface NVME SSD; Standard Edition 2TB, Maximum 8TB supports 8TB |
Storage bandwidth | Continuous stable record bandwidth ≥2gb/s; continuous stable reading bandwidth ≥2gb/s |

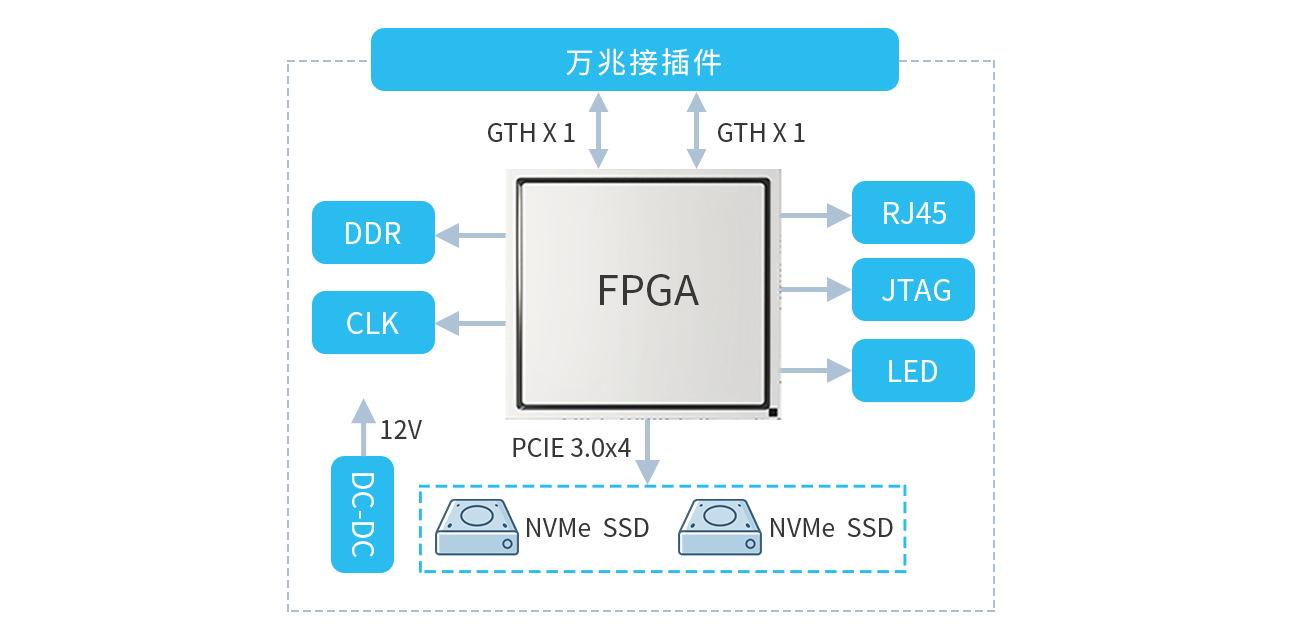

Data interface | 2 x gth x 1, support Aurora, SRIO protocol |
Control interface | Road Wanzha.com port/1 Gigabit Network port |
File management | Standard file system (EXFAT file system) |
Control protocol | The network adopts a standard FTP communication protocol; supports standard FTP tools to access file access |
Download bandwidth | Gigabit network port ≥100MB/s; 10,000MB/s |
Software function | Real -time recording functions, data release functions, data access, file online management function, self -test and fault detection function, abnormal tolerance protection mechanism and other functions. |
Operating temperature | Standard temperature: 0 ℃ to+55 ℃ Military temperature: -40 ° C to+70 ° C (optional, only partial hard disk, decreased bandwidth) |
Cooling method | Compatible wind and cold and cold, support structure customization |
Consumption | Full load run ≤20W |
Size | 92.00mm x 69.00mm |
Serial number | Order model | Configuration |
1 | FK-SK7-M2S1-2T | 2TB storage capacity, ≥2GB bandwidth |
2 | FK-SK7-M2S1-4T | 4TB storage capacity, ≥2GB bandwidth |
3 | FK-SK7-M2S1-8T | 8TB storage capacity, ≥2GB bandwidth |
