◆ | Standard 6U 5HP VPX architecture products, maximum 200G data exchange function; |

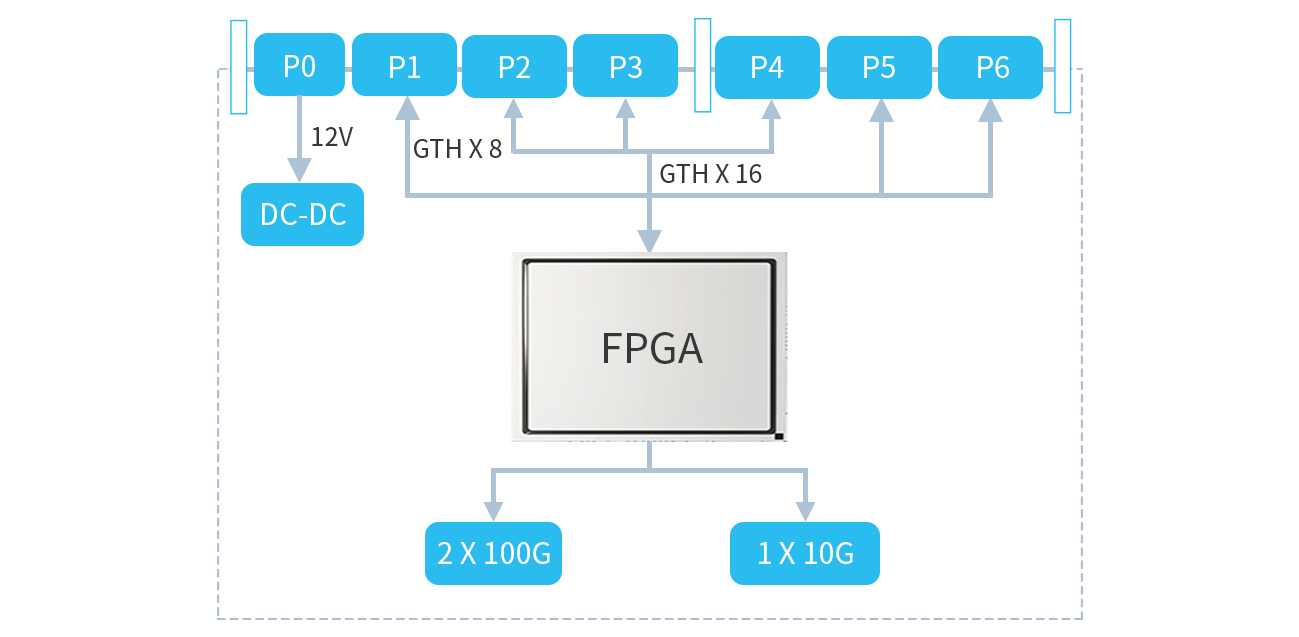

◆ | Adopting Fengke data exchange architecture, providing 4 sets of 16X GTH data to write, port 4096 ports; |
◆ | The custom protocol is converted to a standard network protocol for high -speed signal signal processing directly to cloud processing; |
-
Exchange 200 GBPS bandwidth -
Port 4096 shunt -
Real-time data exchange -
Support for multiple protocols

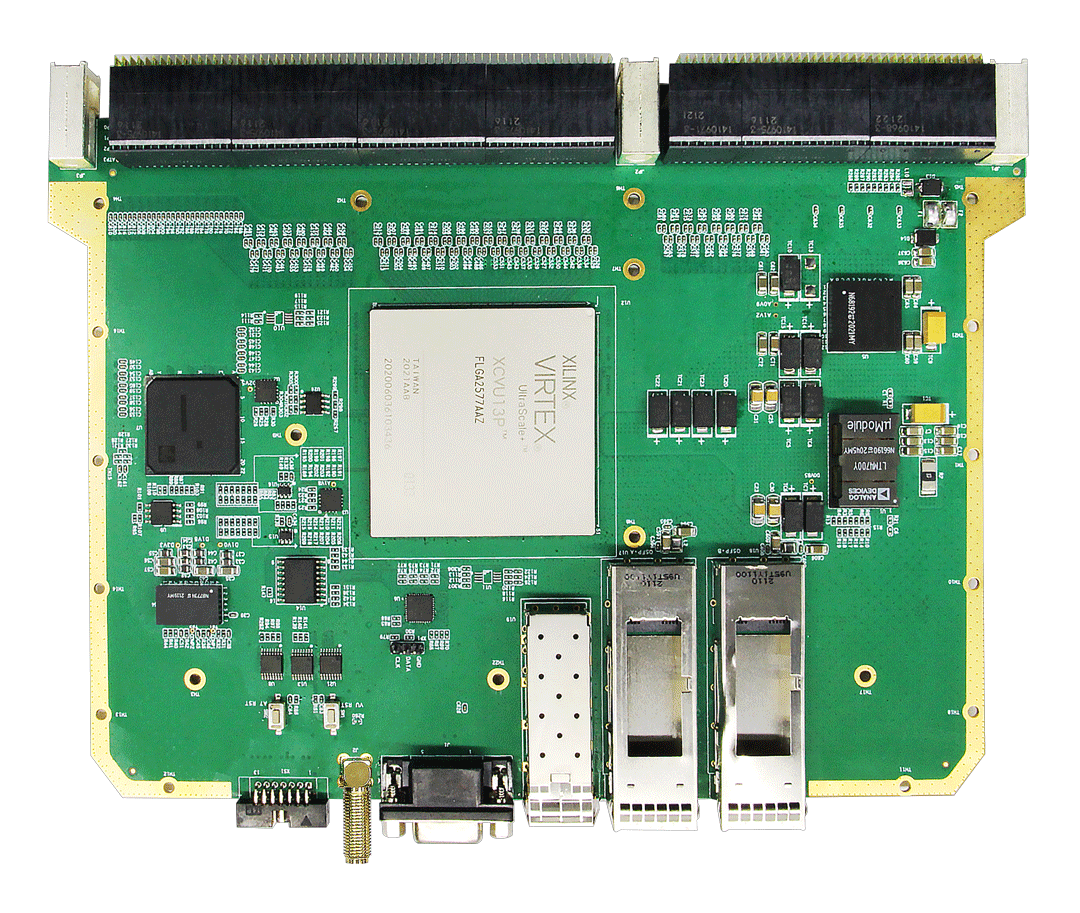

Product form | 6U VPX rear board (same size as front mount) with a height of 5HP |
Switching bandwidth | 200Gbps |
The number of ports | 4096 |
Network interfaces and protocols | Panel: 2ch 100G (support QSFP28 type optical module) Panel: 1ch 10G (support SFP+ optical module) Protocol: Standard UD |
Customize interfaces and protocols | VPX connector: 16 groups of GTY 4x interface; Protocol: 8-way Aurora 8x 10Gbps; |
Network bandwidth | The effective transmission rate per 100G network ≥ 86.4Gbps Each channel supports 100G 2048 device connections Supports two 100G data replication shunt mechanisms |
Function introduction | · Real-time conversion of Aurora protocol data to 100G UDP protocol data; · Real-time conversion of 100G UDP protocol data to Aurora protocol data; · Support data sending and receiving at the same time; · Support network port and Aurora data channel configurable, configuration can save function, power-up automatic work; · Support 100G interface access switch work; Support multiple devices (1-2048) to connect a 100G interface through the switch at the same time for data transmission and receiving; |
Operating temperature | Standard temperature: 0°C to +55°C; Military temperature: -40°C to +85°C |
Power consumption and heat dissipation | Power consumption ≤ 60W, compatible with air cooling and conduction cooling; |
| Size | 25mm(H) ×262mm(W)×165mm(D) |
| Serial number | Order the model number | Disposition |
| 1 | FK-NSVU13P-200G | Dual 100G, 8CH Aurora 8X 10Gbps |
| 2 | FK-NSVU9P-200G | Dual 100G, 4CH Aurora 8X 10Gbps |
