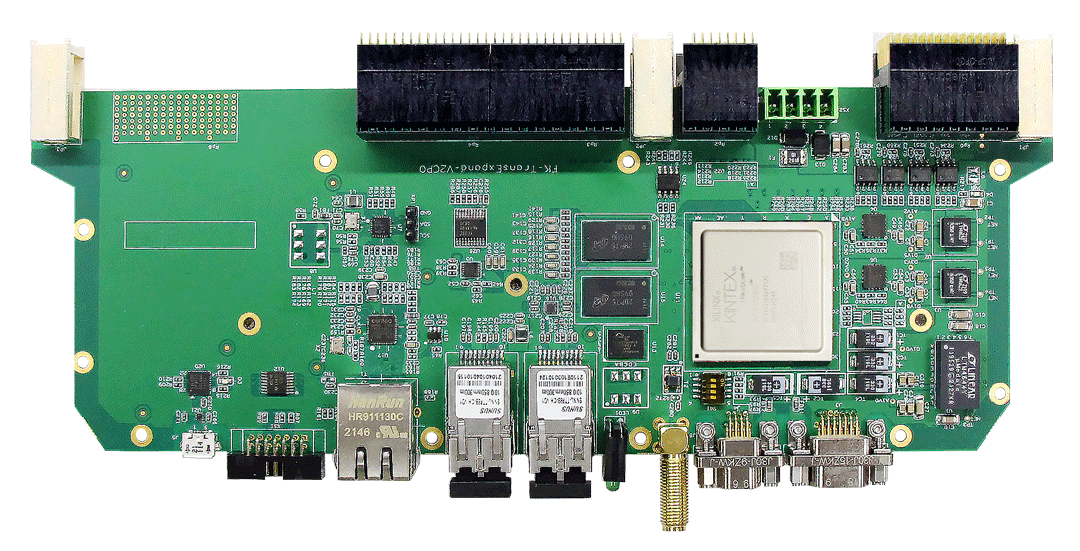

◆ | Standard 6U 5HP VPX Plate -panel product, maximum 20G data exchange function; |

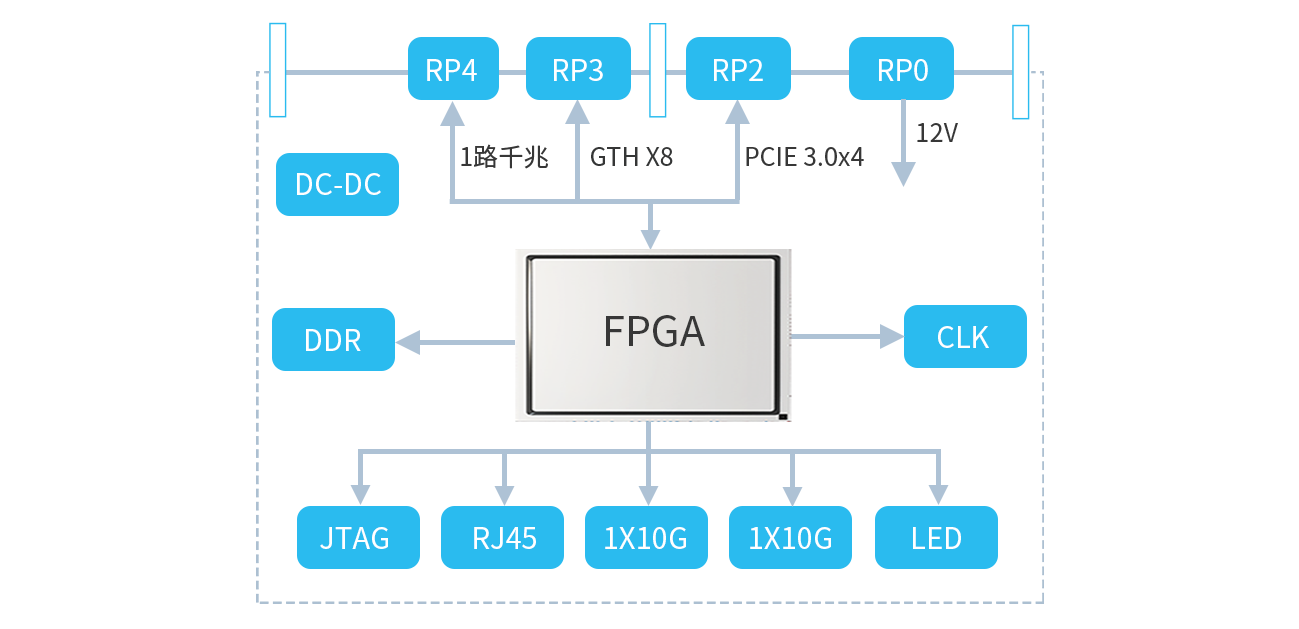

◆ | Adopting Fengke data exchange architecture, providing 2 groups of 4X GTH data to write; |
◆ | The custom protocol is converted to a standard network protocol for high -speed signal signal processing directly to cloud processing; |
-
20 GBPS exchange bandwidth -
4096 diversion port -
Real-time data exchange -
Support for multiple protocols
Product form | 6u VPX Pentai card, 5HP height 5HP |
Exchanges bandwidth | 20Gbps |
Number of ports | 4096 |
Network interface and protocol | Panel: 2 roads 10g (LC optical fiber interface) Protocol: Standard 10G TCP Server |
Custom interface and protocol | VPX connection plug -in: 2 groups of GTH 4X interface; protocol: 2 Aurora 4X / 2 SRIO 4X; |
Network bandwidth | Effective transmission rate of 10G network per road ≥800MB/s Support the two -way 10G interface at the same time; |
Features | · Aurora/SRIO protocol data to the real -time conversion of 10G TCP protocol data; The real -time conversion of the 10G TCP protocol data to the Aurora/SRIO protocol data; · Simultaneous sending and receiving while supporting data; · Support 10G interface access switches; · Supporting multiple devices at the same time through the switch connection for data receiving and receiving; |
Operating temperature | Standard temperature: 0 ℃ to+55 ℃; military temperature: -40 ℃ to+85 ℃ |
Power consumption and heat dissipation | Power consumption ≤30W, compatible wind and cold and cold; |
| Size | Size: 25mm (high) × 262mm (width) × 81.5mm (deep) |
| Serial number | Order model | Configuration |
| 1 | FK-NSKU-20G | Two road 10g, 2 Aurora 4x/2 SRIO 4X |
