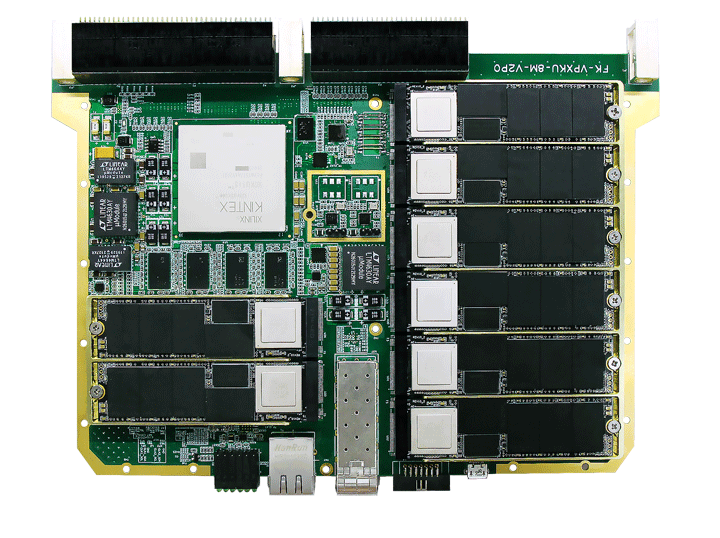

◆ | Standard 6U 5HP VPX architecture products, 8 disk group RAID 0, providing multiple high -speed data interfaces to the outside world; |
◆ | Adopting Fengke NVME storage architecture, FTP or network disk access functions can be provided through Gigabit/10,000 -Dibin port ports. Through the PCIE interface, you can directly read and write the storage data data. There is no need to transfer; |
◆ | It has the characteristics of high bandwidth, large capacity, and providing standard EXFAT file systems, and can be widely used in data collection records storage and data management in related fields; |




| Product form | Standard 6U VPX architecture, height 5HP |
| Storage | Support 8 M.2 interface NVME SSD; capacity supports 4TB/8TB/16TB/32TB multiple specifications optional available |
| Storage bandwidth | Continuous stable record bandwidth ≥10GB/s; continuous stable reading bandwidth ≥10GB/s |
| Data interface | Backboard P1: 16X Gth |
| Control interface | Front panel: Road Wanzar.com, 1 Gigabit Network port; P2: DCIEX4 |
| File management | Standard file system (EXFAT file system) |
| Control protocol | The network adopts a standard FTP communication protocol; supports standard FTP tools to access file access |
| Download bandwidth | Gigabit network port ≥100MB/s; 10,000MB/s |
| Software function | Real -time recording functions, data release functions, data access, file online management function, self -test and fault detection function, abnormal tolerance protection mechanism and other functions. |
| Operating temperature | Standard temperature: 0 ℃ to+55 ℃ Military temperature: -40 ° C to+70 ° C (optional, only partial hard disk, decreased bandwidth) |
| Cooling method | Compatible wind and cold and cold, support structure customization |
| Consumption | Full load run ≤70W |
| Size | 233.35mm × 160mm ×25mm |
| Serial number | Order model | Configuration |
| 1 | FK-VPXKU-M8S1-8T | 8TB storage capacity, ≥4GB bandwidth |
| 2 | FK-VPXKU-M8S2-8T | 8TB storage capacity, ≥7GB bandwidth |
| 3 | FK-VPXKU-M8S3-8T | 8TB storage capacity, ≥10GB bandwidth |
4 | FK-VPXKU-M8S1-16T | 16TB storage capacity, ≥4GB bandwidth |
5 | FK-VPXKU-M8S2-32T | 32TB storage capacity, ≥7GB bandwidth |
