FK-VKU-M4
◆ | Independent product design, a variety of image and video interface configuration; |
◆ | Using Fengke NVME storage architecture, you can provide interfaces such as fiber, SDI, Cameralink HDMI CXP; |
◆ | Support the synchronous record of image data; |
Product features
-
Support CL, SDI, CXP, Gige writes -
10 gb/S memory bandwidth -
16 t storage capacity -
For exFAT file system
Detailed parameters
| Product form | Miniaturized modular device |
| Interface Type | Fiber interface: 4; CoaxPress interface: 1 Road 4X, support 1x mode; 12G SDI interface: 2 on, 2 out of the road, 2 out Cameralink interface: 4 input; HDMI interface: 1 enter, 1 out |
| Storage | Support 4 M.2 interface NVME SSD; standard version 4TB, maximum support 16TB |
| Storage bandwidth | Continuous stable record bandwidth ≥4GB/s; continuous stable reading bandwidth ≥ 4GB/s |
| Control interface | 1 Wanzaro port, 1 Gigabit network port; |
| File management | Standard file system (EXFAT file system) |
| Control protocol | The network adopts a standard FTP communication protocol; supports standard FTP tools to access file access |
| Download bandwidth | Gigabit network port ≥100MB/s; 10,000MB/s |
| Software function | Real -time recording functions, data release functions, data access, file online management function, self -test and fault detection function, abnormal tolerance protection mechanism and other functions. |
| Operating temperature | Standard temperature: 0 ℃ to+55 ℃ Military temperature: -40 ° C to+70 ° C (optional, only partial hard disk, decreased bandwidth) |
| Cooling method | Integrated heat sink chassis |
| Consumption | Full load run ≤50W |
| Size | 250mm ×200mm×50mm |

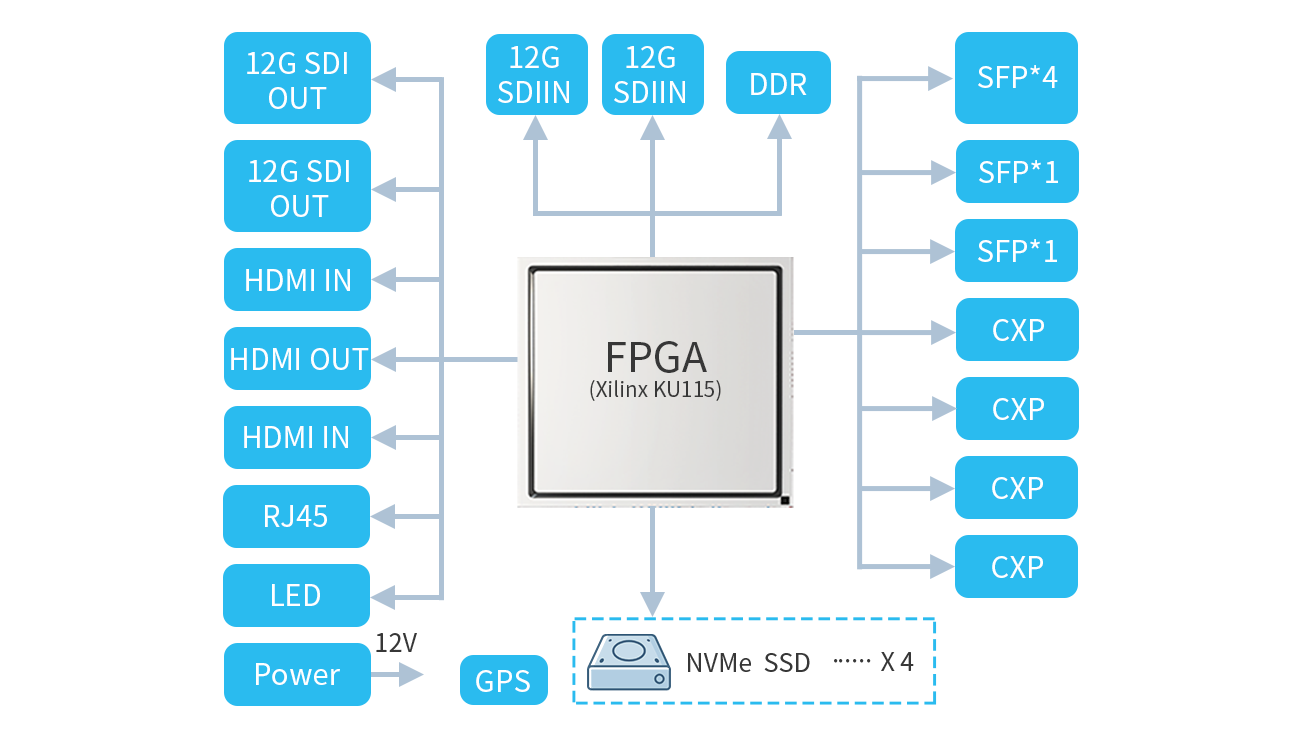

Block diagram
Ordering Guide
| Serial number | Order model | Configuration |
| 1 | FK-VCLK4KU-M4S1-4T | 4TB storage capacity, 4 Cameralink interface |
| 2 | FK-VSDI2KU-M4S1-4T | 4TB storage capacity, 2 SDI interface 2 |
| 3 | FK-VCXPKU-M4S1-4T | 4TB storage capacity, CXP interface |
